resin insulation dry-type power transformer

Update: 2013/10/22 View:

Brand: wenbo
Type: SC
Price: RMB
Promotion: RMB ( 0 Customers Bought)

Introduction

Products Name Tech data of 10kV SC(B) series resin insulation dry-type power transformer

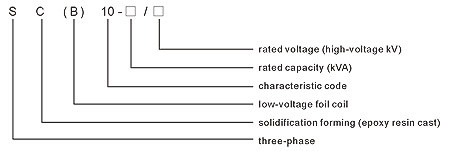

Type Meaning

resin insulation dry-type power transformer

product standard

GB/T10228-1997 GB6450-1986 JB/T10088-2004 GB4208-1993
rated high-voltage：10(11、10.5、6.6、6.3、6)kV rated low-voltage：0.4kV
connection group：Dynll or Yyn0 tapping range of high-voltage：±5％ or ±2×2.5%
insulating level：L1 75AC35/LI 0AC5 frequency：50Hz

Tech data of 10kV SC(B)10 series resin insulation dry-type power transformer

rated capacity (kVA)	voltage group (kV)	connection method	dissipation（kW）		no-load current (%)	impedance voltage (%)	insulating level	weight(Kg)
rated capacity (kVA)	voltage group (kV)	connection method	no-load	load(120℃)	no-load current (%)	impedance voltage (%)	insulating level	weight(Kg)
10	high-voltage 11 10.5 10 6.3 6 low-voltage 0.4	Dyn11 or Yyno	0.135	0.305	4.0	4	F/F	130
20			0.170	0.595	3.5			180
30			0.195	0.705	2.6			330
50			0.270	0.995	2.2			380
63			0.330	1.210	2.2			440
80			0.370	1.380	2.2			510
100			0.400	1.570	2.0			590
125			0.470	1.850	1.8			650
160			0.545	2.130	1.8			780
200			0.625	2.530	1.6			930
250			0.720	2.760	1.6			1040
315			0.880	3.470	1.4			1180
400			0.975	3.990	1.4			1450
500			1.160	4.880	1.4			1630
630			1.345	5.870	1.2			1900
630			1.300	5.960	1.2	6		1900
800			1.520	6.955	1.2			2290
1000			1.770	8.130	1.1			2700
1250			2.090	9.690	1.1			3130
1600			2.450	11.73	1.1			3740
2000			3.320	14.45	1.0			4150
2500			4.000	17.17	1.0			4810
3150			5.140	22.50	0.8	8		5800
4000			5.960	27.00	0.8	8		7100

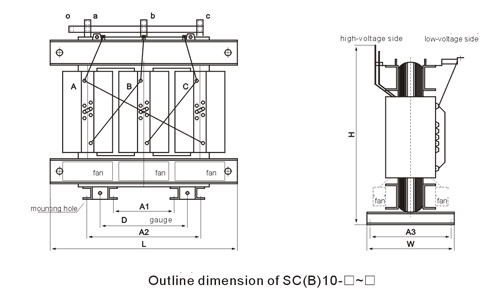

Outline dimension

resin insulation dry-type power transformer

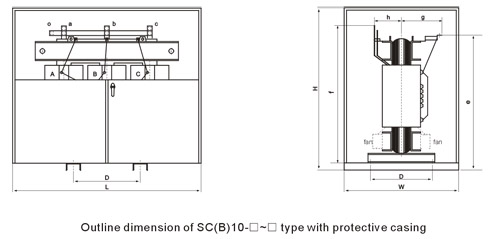

rated capacity (kVA)	outline dimension（mm）							outline dimension with protective casing(mm)
rated capacity (kVA)	L	W	H	D	A1	A2	A3	L	W	H	D	e	f	g	h
10	600	400	520	400	400	400	450	900	900	1200	400	850	840	250	150
20	600	400	520	400	400	400	450	900	900	1200	400	850	840	250	150
30	670	500	720	350	350	350	450	1050	800	1000	350	600	720	210	210
50	690	500	770	350	350	350	450	1050	900	1050	350	650	770	220	220
63	690	500	810	350	350	350	450	1050	900	1100	350	690	810	220	220
80	720	500	840	400	400	400	450	1100	900	1150	400	720	840	230	230
100	750	500	860	450	450	450	550	1150	1000	1150	450	740	860	240	240
125	950	600	910	550	550	550	550	1350	1050	1200	550	870	910	300	210
160	1020	600	960	550	550	550	550	1400	1050	1250	550	920	960	310	220
200	1070	600	1060	550	550	550	550	1450	1100	1350	550	1020	1060	315	225
250	1100	710	1120	660	660	660	660	1500	1150	1400	660	1090	1120	320	230
315	1120	710	1140	660	660	660	660	1500	1200	1450	660	1100	1140	325	235
400	1210	870	1240	660	660	660	660	1600	1250	1600	660	1130	1240	360	320
500	1240	870	1310	820	820	820	820	1600	1300	1650	820	1180	1310	370	330
630	1400	870	1400	820	820	820	820	1800	1300	1700	820	1280	1390	360	320
630	1460	870	1340	820	820	820	820	1850	1300	1650	820	1230	1340	350	310
800	1550	870	1460	820	820	820	820	1900	1300	1800	820	1340	1460	360	320
1000	1600	870	1620	820	820	820	820	1950	1300	1950	820	1430	1620	370	325
1250	1680	1120	1700	1070	1070	1070	1070	2050	1350	2000	1070	1490	1700	385	340
1600	1750	1120	1790	1070	1070	1070	1070	2100	1400	2100	1070	1570	1790	410	370
2000	1770	1120	1810	1070	1070	1070	1070	2150	1500	2100	1070	1520	1810	430	405
2500	1840	1120	1930	1070	1070	1070	1070	2200	1500	2200	1070	1640	1930	440	420
3150	1950	1120	1900	1070	1070	1070	1070	2350	1600	2250	1070	1600	1900	455	435
4000	2030	1120	2000	1070	1070	1070	1070	2400	1600	2300	1070	1700	2000	470	450
